Setting the tension on the ECO is easy.

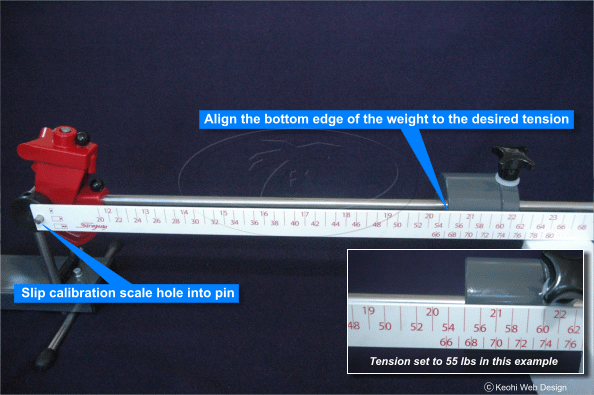

At the left edge/start of the calibration scale is a hole that slips into a pin on the tensioning assembly.

Align the scale to the weight lever such that both are level to each other.  You then loosen the weight screw and glide the weight to the area of the desired tension.

Align the bottom of the weight to the desired tension and tighten the weight screw.

That's it!

Quick Tip:  I've marked certain points on the weight lever for different tension settings.  For my Volkl Catapult 4 racquet, the settings can range from 51lbs to 55lbs, so I've made Sharpie marks at the 51, 53, and 55lbs points.  This way I wont' have to get the calibration scale out each time I have to make changes.
