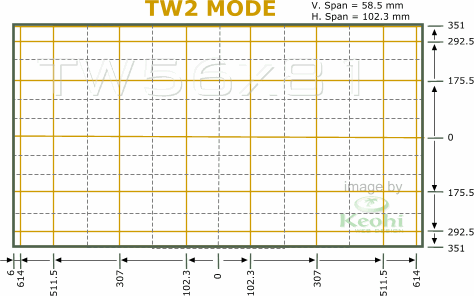

This image has the correct grid labels for vertical positions 292.5mm
and 351mm. The service manual has each set of points located one position away from
the zero position mark.
In this mode, cursor may be located at out of screen frame. So,
adjust with care referring cursor position indicated on the screen.
Note:
In this mode, cursor may be located at out of screen frame. So, adjust with care
referring cursor position indicated on the screen.

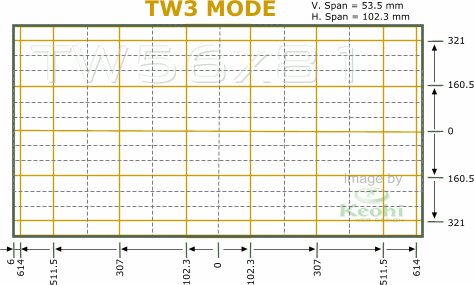

On this screen, convergence pattern center is displayed on screen center, but picture
center is indicated at 22mm up on screen.
